DA-681C series
The Moxa DA-681C is a compact rack-mount computer equipped with an Intel Celeron or Intel Core i3 processor, providing a powerful and reliable solution for industrial applications. This computer series complies with IEC 61850-3 and IEEE 1613 standards, making it ideal for SCADA, security, and power management systems. The DA-681C operates reliably in harsh conditions, making it an excellent choice for power substations and industrial environments. Moxa solutions can be customized with pre-installed memory and operating systems to meet customer needs.
Features:
- 1U form factor
- Intel Celeron or Core i3 processor
- Operating temperature range: -40 to +70 °C
- Dual power inputs for critical applications
- Passive cooling
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- For substations: IEC 61850-3, IEEE 1613
- Multiple other certifications

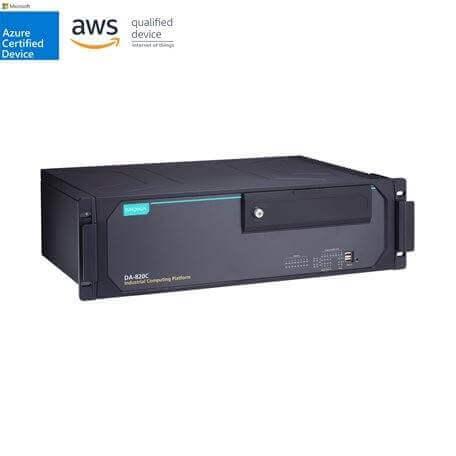

DA-820C series
The Moxa DA-820C is a high-performance rack-mounted computer offering a wide range of processor options, from Intel Core i3 up to Intel Xeon processors. This large-form-factor computer supports various expansion cards, enhancing connectivity options and making it an excellent choice for SCADA, security, and power management applications. The DA-820C meets IEC 61850-3 and IEEE 1613 standards, providing reliable performance in demanding industrial environments. Moxa devices can also be customized with pre-installed memory and operating systems to meet specific requirements.
Features:
- 3U form factor
- Intel Core i3/i5/i7 or Xeon processor
- Passive cooling
- Operating temperature range: -40 to +70 °C
- Dual power inputs for critical applications
- Integrated TPM 2.0 module
- Supports Intel® RST RAID 0/1/5/10
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- For substations: IEC 61850-3, IEEE 1613
- Multiple other certifications

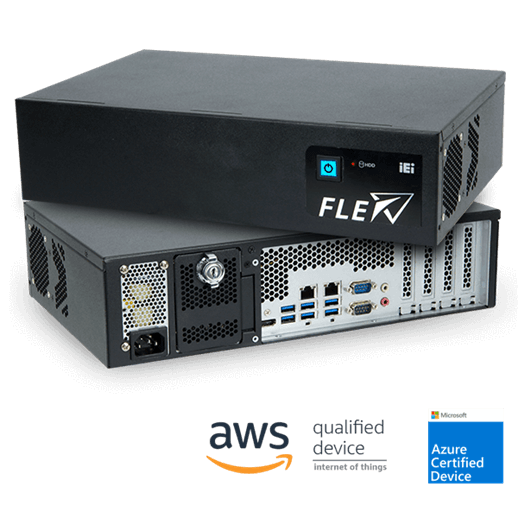

iEi Flex
The iEi Flex series is a modular 2U rack-mounted computer with extensive connectivity and expansion card options. The Flex computer is available with a broad range of processors, from Intel Pentium to Intel Xeon. For AI applications, iEi offers Intel-based accelerator cards compatible with this system. Inquire about pre-installed memory and operating systems as needed.
Features:
- 2U form factor
- Intel Pentium, Core i3/i5/i7, or Xeon processor
- Cooling with industrial-grade fans
- Operating temperature range: -20 to +40 °C
- 2 x M.2 SSDs and 4 x hot-swappable SATA III SSDs
- 15–23.8” LCD display
