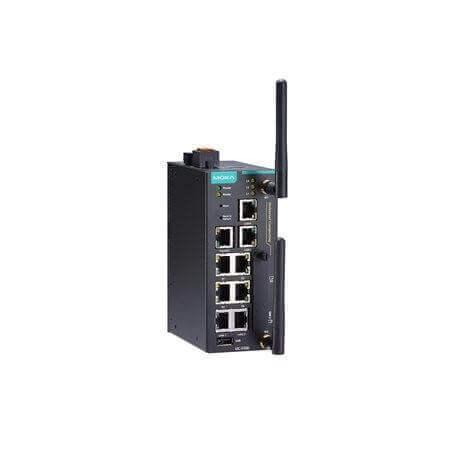

UC-5100 series
The Moxa UC-5100 series is a versatile IIoT gateway computer with an ARM processor, equipped with serial ports, CAN ports, and Ethernet. Flexibility is further enhanced by a Mini PCIe slot for adding Wi-Fi or LTE modules.
Features:
- Armv7 Cortex-A8 1000 MHz processor
- Mini PCIe socket for Wi-Fi or LTE
- Wide temperature support: -40 to +75 °C
- Dual CAN ports with support for industrial CAN 2.0 A/B protocol
- Expandable storage with SD card
- 2 Ethernet ports and 4 serial ports
- Long-term support with Moxa Industrial Linux
- IEC 61000-6-2/6-4 standards for harsh environments

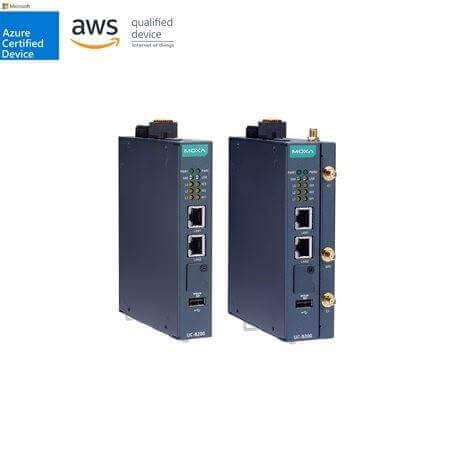

UC-8200 series
The Moxa UC-8200 series is a robust IIoT gateway computer with a dual-core ARM processor. These computers come equipped with serial and Ethernet ports, and integrated LTE enables remote management through the ThingsPro Edge software.
Features:
- Armv7 Cortex-A7 dual-core 1 GHz processor
- LTE-ready with Verizon/AT&T certifications and industrial versions with CE/FCC/UL certifications
- Wide temperature support: -40 to +75 °C
- CAN port with industrial CAN 2.0 A/B protocol support
- Expandable storage with Micro-SD card
- Long-term support with Moxa Industrial Linux
- IEC 61000-6-2/6-4 standards for harsh environments
