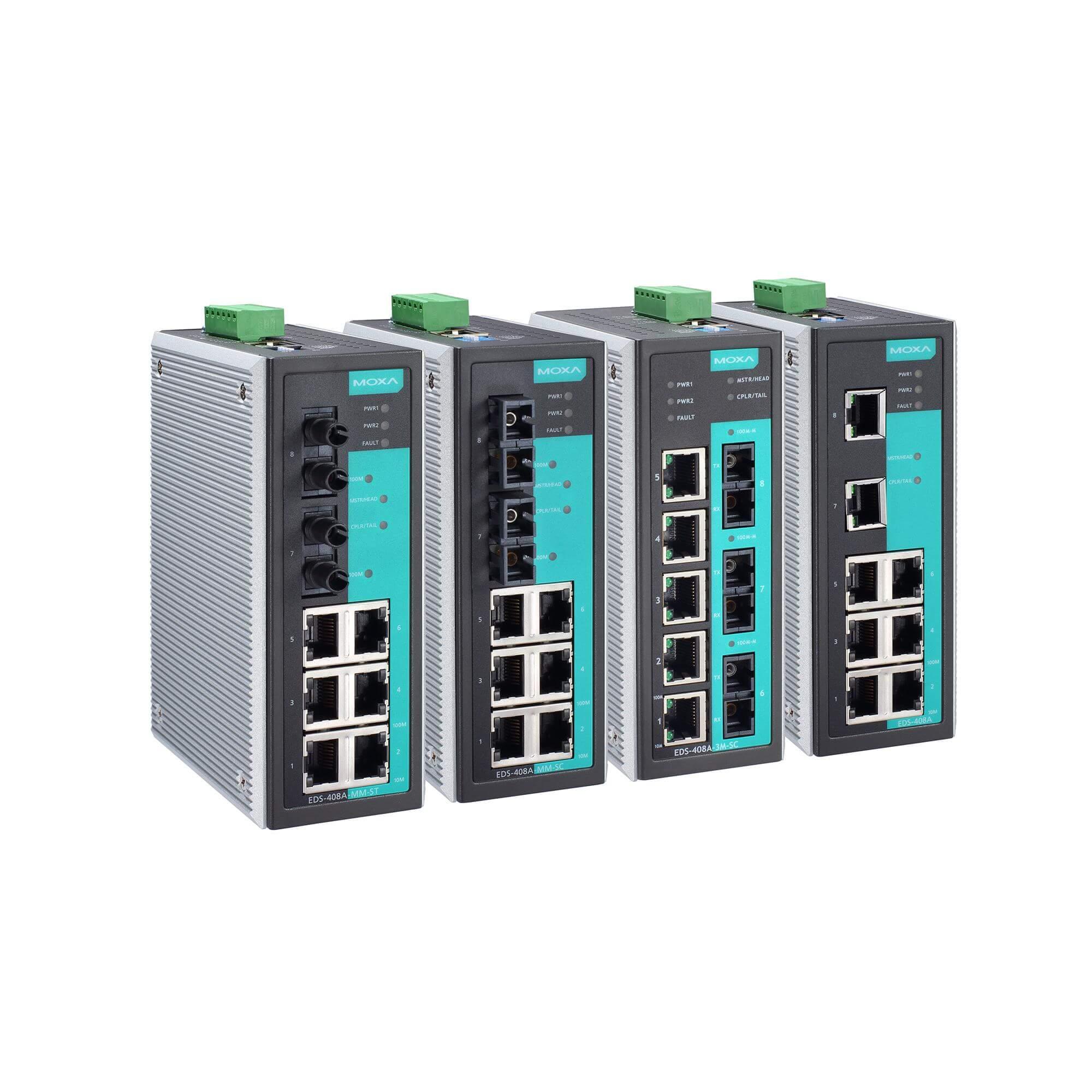

EDS-400A series
The Moxa EDS-400A series includes managed DIN rail-mounted Layer 2 switches. These 5- to 8-port switches are designed for harsh industrial environments, including maritime (DNV-GL), highways, mobile applications (NEMA TS2), and hazardous locations (ATEX Zone Class I Div. 2). The switches are FCC and CE compliant, with fiber port models (1-3 ports) available in various connector options.
With an IP-30 rating, the switches support several useful network management technologies, including Turbo Ring, Turbo Chain, RSTP, STP, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, and port mirroring. Turbo Ring can be easily configured via a web-based interface or the DIP switches on the top panel.
Features:
- 10/100BaseT(X) (RJ45 port)
- 100BaseFX (multi/single-mode, SC or ST connector)
- PROFINET or EtherNet/IP (PN and EIP models)
- Redundant 12/24/48 VDC power input
- Wide temperature range: -40 to +75 °C (T models)

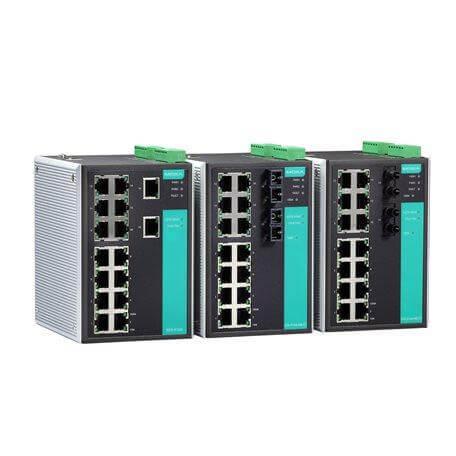

EDS-500A
The Moxa EDS-500A series includes 5- to 18-port managed DIN rail-mounted Layer 2 switches, with fiber port models available in various connector options: 100BaseFX (multi/single-mode, SC or ST connector) and SFP ports. The EDS-510A series switches are equipped with up to three Gigabit Ethernet ports.
With an IP-30 rating, these switches support a range of useful network management technologies, including Turbo Ring, Turbo Chain, RSTP, STP, MSTP, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, and port mirroring. They also support EtherNet/IP and Modbus TCP protocols for device management and monitoring.
Features:
- 10/100BaseT(X) (RJ45 port)
- 100BaseFX (multi/single-mode, SC or ST connector)
- 10/100/1000BaseT(X) RJ45 and 1000Base SFP Slots (EDS-510A series)
- Enhanced network security with TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH
- Redundant 12/24/48 VDC power input
- Wide temperature range: -40 to +75 °C (T models)

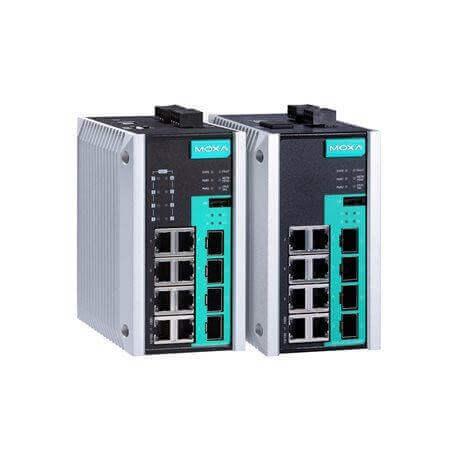

EDS-(G)500E series
The Moxa (G)500E series includes managed DIN rail-mounted Layer 2 switches. These 10- to 28-port switches are designed for critical applications that require enhanced cybersecurity, such as factory automation, ITS, process control, and power substations. The switches feature USB ports for switch configuration, system file backup, and firmware updates, simplifying management. With an IP-30 rating, these switches support redundancy protocols like Turbo Ring, Turbo Chain, RSTP/STP, and MSTP, enhancing system reliability. The EDS-(G)500E series also supports advanced management and security features based on the industrial IEC 62443 cybersecurity standard.
The EDS-500E series models include 7-24 10/100BaseT(X) RJ45 ports and 3-4 10/100/1000BaseT(X) RJ45 or 100/1000BaseSFP+ combo ports. The EDS-G500E series models are 8- to 16-port full Gigabit Ethernet switches.
Features:
- 10/100BaseT(X) (RJ45 port)
- 10/100/1000BaseT(X) RJ45 or 100/1000BaseSFP+ combo ports
- Management and security features based on the industrial IEC 62443 cybersecurity standard
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC addresses
- 12/24/48 VDC or 110/220 VDC/VAC (EDS-528E) power input
- Wide temperature range: -40 to +75 °C (T models)

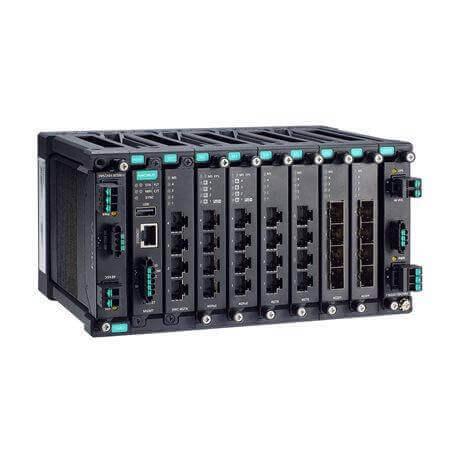

MDS-G4000 series
The Moxa MDS-G4000 series managed Layer 2 modular gigabit switches are available in 12- to 28-port models. With an ultra-compact design, DIN rail mounting, multiple Ethernet module options (RJ45, SFP, and PoE+), and a wide power input range (24/48 VDC, 110/220 VAC/VDC), these switches meet the demands of even the most complex network designs. The hot-swappable modular design ensures modules can be added or replaced easily without shutting down the switch or interrupting network operations.
Features:
- Multiple Ethernet module options (RJ45, SFP, and PoE+)
- Modules can be added or swapped without powering down the switch
- 12/24/48 VDC or 110/220 VDC/VAC power input
- Wide temperature range: -40 to +75 °C (T models)
MDS-G4000-L3 series
The Moxa MDS-G4000 series managed Layer 3 modular gigabit switches are available in 12- to 28-port models. Support for Layer 3 routing enables deployment across multiple networks, making them ideal for large industrial networks. Additionally, the MDS-G4000-L3 series features an HTML5-based, user-friendly web interface that offers a smooth experience across various platforms and browsers.
With an ultra-compact design, DIN rail mounting, multiple Ethernet module options (RJ45, SFP, and PoE+), and a wide power input range (24/48 VDC, 110/220 VAC/VDC), these switches meet the requirements of complex network designs. The hot-swappable modular design allows for easy module addition or replacement without shutting down the switch or interrupting network operations.
Features:
- Multiple Ethernet module options (RJ45, SFP, and PoE+)
- Modules can be added or swapped without powering down the switch
- 12/24/48 VDC or 110/220 VDC/VAC power input
- Wide temperature range: -40 to +75 °C (T models)
PT-G500 series
The PT-G500 series switches are designed for use in power substation networks, where connection loss is not an option. These switches feature PRP and HSR functionalities, enabling the creation of a truly zero-millisecond recovery time redundant network. Hardware-based IEEE 1588v2 PTP keeps clocks synchronized, and extended temperature ranges ensure that the switches remain operational even in challenging conditions. For connecting devices to PRP and HSR networks, these switches offer REDBOX functionality. If there is a need to connect PRP and HSR networks to each other or to interconnect HSR rings, Moxa’s PT-G500 series provides the tools needed.
